Differential Equations of Motion

A photo and schematic diagram of the three-story building model used in this lab are shown in Figure 3 below. The model consists of:

When one floor moves laterally with respect to the floor below it, the columns bend, creating lateral "shear" forces, shear force vector in the columns. The bending of these columns is similar to the extension of a spring; we can usually assume that the shear force in the columns is constant over the height of the columns and that the shear force shear force is proportional to the column deformation, displacement. In other words, the shear force increases linearly with the column deformation. The shear stiffness shear stiffness (stiffness constant) of the column is this constant of proportionality, and . The shear forces in the columns act on the mass of the floors, at each floor-column connection. These forces will contribute to the total acceleration, acceleration, of the floor masses mass of a floor, .

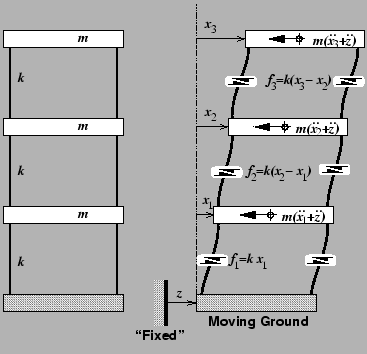

Figure 3: The model of a three-story building. (a) photograph of the physical model (b) schematic diagram
(a)photo of three-story model(b)diagram of three-story model

To develop the differential equations of motion, let's look at the forces applied to each mass separately. Starting with the first mass (which is displaced a distance displacement of first mass with respect to the ground, at any point in time, time), the forces from the columns below the mass are acting to the left and the forces from the columns above the mass are acting to the right.
Inertial Forces
We add inertial forces to make the calculations in the reference frame of the floor (all forces add up to zero). While a moving mass does not have a force working against its motion when viewed from stable ground, inertial forces are percieved in the non-inertial reference frame of the floor.
In addition, since this mass is accelerating, it experiences inertial forces. The first floor's inertial force is its mass times its total acceleration. The total acceleration is the acceleration of the first mass with respect to the ground ( ) plus the acceleration of the ground ( ). The inertial force will oppose this acceleration and will act to the left with a magnitude of . Now we can write the equations of motion for this first mass.
(3)

We repeat this process for the second mass. The forces on the second mass from the columns below are acting to the left. From the columns above the second mass, the forces are acting to the right. The inertial force on the second mass is acting to the left. Summing forces on the second mass gives us
(4)

Repeating this again for the top mass, we get
(5)

These three equations can be rewritten by simply rearranging terms,
force from first floor acceleration total shear forces of first floor force from ground acceleration (6)
force from second floor acceleration total shear forces of second floor force from ground acceleration (7)
force from third floor acceleration total shear forces of third floor force from ground acceleration (8)

These equations may in turn be written with the use of matrices,
(9)

or, in short-hand,
(10)

Mass and Stiffness Matrices
Note that the mass matrix is diagonal and that both the mass and stiffness matrices are symmetric. In general the mass matrix is not always diagonal, but it is always symmetric.
where position vector is the displacement vector, mass matrix is the mass matrix, stiffness matrix is the stiffness matrix, and column vector of ones is a column vector of ones.

We now have a differential equation describing the free vibration of our three-story building model. However, to more accurately describe the model, we must also include the affects of damping, which we do in the next section. Then, we will solve the differential equation to find the natural frequencies and mode shapes of the model in order to understand the response of the model in earthquake conditions.
