The Animated Bonding of Lithium Hydride
Andy Rintoul and Bonnie Ayers
Table of Contents
- Purpose of the Project
- Scientific Background
- Computational Approach
- Results
- References
Purpose of the Project

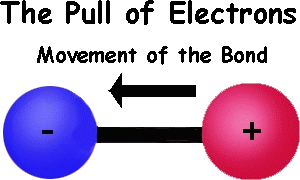

The purpose of the project is to visually represent the bonding of two atoms, and the effect of electronegativity on their behavior.
Back to top
Scientific Background

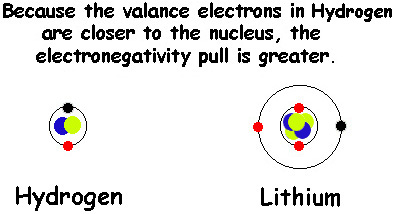

"Electronegativity: A measure of the ability for an atom in a molecule to attract electrons." -Chemistry and Chemical Reactivity
Back to top
Computational Approach
MacSpartan Plus Builder
MacGamess
Clean Data
Perl Program
- Acts as an adapter between Gamess' data and DataScope
NCSA DataScope
- Create Individual Images from data
NCSA Image
- Animates Individual Images into a Movie
THE ASSUMPTIONS USED TO MAKE THE CALCULATIONS POSSIBE:
RESTRICTED HARTREE -FOCK
THE SYMMETRY IS C4V
THE CODE USED IN MACGAMESS
$CONTRL SCFTYP=RHF $END
$BASIS GBASIS=STO NGAUSS=6 $END
$DATA
LiH for plot . . .
CNV 4
Hydrogen 1.0 0.0 0.0 -0.756
Lithium 3.0 0.0 0.0 0.252
$END
$GUESS GUESS=MINGUESS $END
$ELDENS IEDEN=1 WHERE=GRID OUTPUT=PUNCH MORB=2 $END
$GRID ORIGIN(1)=0,-2,-2 XVEC(1)=0,-2,2 YVEC(1)=0,2,-2 SIZE=0.1 $END
Back to top
Results
ELECTRONEGATIVE CHARGE: LI 0.71
H -0.71
THE TOTAL ENERGY: -7.9298 HARTREE
Back to top
References
Kotz and Treichel. Chemisty And Chemicel Reactivity, Third Edition. Fort Worth: Saunders College Publishing, 1996.
Dept. of Chemistry, NDSU. GAMESS User's Guide. Berkeley, CA: 1989
Hebrank, Andy (A Lowly Intern).
Mike (the creator of Perlvert)
Gotwals, Bob 2 (Computational Chemistry Professor)
McInnis, Cindy (Chemisty Professor at NRCA)
